2019 Arctic Cat Stampede 4 Hunter Edition specifications of UTV and Side by sides in South Africa, Arctic Cat Stampede specs and UTV pics for Arctic Cat Stampede 4 Hunter Edition 2019.

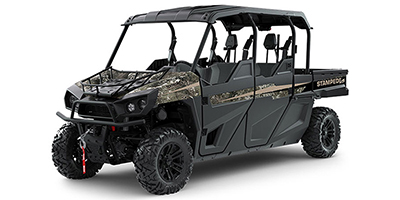

Arctic Cat Stampede 4 Hunter Edition 2019 specs

Below are some specifications of the Arctic Cat Stampede 4 Hunter Edition 2019 model

UTV Type :

Introduction Year :

2019

Engine Spec

Engine Detail :

In-Line

Engine Capacity (cc / Ci ) :

846 / 51.6

Engine Valves :

SOHC

Engine Type :

4-Stroke

Engine Cooling :

Liquid

Engine Cylinders :

Displacement To Weight CC :

0.43

Fuel System :

Fuel Injected

Carborator Count :

Fuel Type :

Petrol

Ignition :

Electric

Engine Case Guard :

Yes

Brakes

Brakes Front :

Hydraulic Disc

Front Brake Diameter (mm / in.) :

229 / 9

Brakes Rear :

Hydraulic Disc

Rear Brake Diameter (mm / in.) :

229 / 9

Suspension

Front Suspension :

Independent Double A-Arm

A-Arm Skid Plate (Front) :

Yes

Suspension - Front Travel (mm / in.) :

241 / 9.5

Front Adjustable Fork Pre-Load :

Yes

Suspension Rear :

Independent Double A-Arm

Suspension Rear - Material :

Steel

A-Arm Skid Plate (Rear) :

Yes

Rear Travel (mm / in.) :

267 / 10.5

Rear Adjustable Shock Spring Pre-Load :

Yes

Number of Rear Shock Absorbers :

Air Adjustable :

Dimensions and Weight

Length (mm / in.) :

4014 / 13.17

Width (mm / in.) :

1473 / 58

Height (mm / in.) :

1943 / 76.5

Ground Clearance (mm / in.) :

287 / 11.3

Wheelbase (mm / in.) :

2977 / 117.2

Dry Weight (Kg / Lbs.) :

902.6 / 1990

Transmission (Gearbox) and Final Drive

Transmission :

Continuously Variable (CVT)

Final Drive :

Selectable 4X2 / AWD

Drive line Modes :

Primary Drive Engine / Transmission :

Belt

Primary Drive - Front Wheels :

Shaft

Diff Lock Location :

Front / Rear

Hi / Low Range :

Yes

Rear Unlocking Differential :

Yes

Reverse :

Yes

Tires and Rims

Tire Make :

Maxxis

Tires Front :

Maxxis Bighorn 2.0 AT 27 X 9-14

Tread Type :

All Terrain

Front Tire Diameter (in) :

Front Tire Width (in) :

Front Rim Diameter (in) :

Tires Rear :

Maxxis Bighorn 2.0 AT 27 X 11-14

Rear Tire Diameter (in) :

Rear Tire Width (in) :

Rear Rim Diameter (in) :

Rim Material :

Aluminum

Rear Solid Axle :

Fuel

Fuel Tank Capacity (l / gal.) :

36 / 9.5

Racks and Payload

Front Rack :

Standard

Payload Capacity (Kg / Lbs.) :

680 / 1500

Storage

Underseat Storage :

Standard

Tool Bag Mount :

Standard

Glove Box / Dashboard Storage :

Standard

Lockable Storage :

Standard

Rear Storage Well :

Standard

Storage Capacity (Cu. ft) :

Storage Capacity (gal) :

192.9

Storage Capacity (l) :

849.5

Bed Capacity (Kg / Lbs.) :

272 / 600

Bed Height (mm / in.) :

297 / 11.7

Bed Length (mm / in.) :

813 / 32

Bed Width(mm / in.) :

1245 / 49

Cargo Bed Material :

Polyethylene

Cargo Bed Tilt :

Yes

Integrated Tie Down Hooks :

Yes

Seats

Number Of Seats :

Seat Material :

Vinyl

Seat Type :

Bench

Seat Belts :

Standard

Folding Seats :

Headrests :

Yes

Number of Seat Rows :

Towing

Tow Hook :

Standard

Rear Hitch :

Receiver

Towing Capacity (Kg / Lbs.) :

907 / 2000

Tow hitch size (cm / in.) :

50.8 / 2

Instrumentation

Digital Instrumentation :

Standard

Clock :

Standard

Fuel Level Warning :

Gauge

Speedometer :

Standard

Tachometer :

Standard

Temperature Warning :

Gauge

Cruise Control :

Standard

Lighting

Light Type :

Halogen

Headlights :

Standard

Halogen Headlights :

Standard

Colours

Metallic :

Comfort

Tilt Steering :

Standard

Exterior - Safety and Design

Camouflage :

Chain Guard :

Bash Plate (Front) :

Yes

Body Material :

Plastic

Brush Guard :

Yes

CV Boot Cover :

Yes

Decal Kit :

Standard

Exterior Guards :

Frame :

Steel

Front Bumper :

Standard

Front Fender Flairs :

Standard

Front Stabilizer Bar :

Yes

Grab Rail Or Strap :

Standard

Gun Scabbard Mount :

Standard

Mud Guards - Front :

Mud Guards - Rear :

Power Outlet :

Standard

Radiator Guard :

Yes

Rear Stabilizer Bar :

Yes

Cab

Cab Bed Divider :

Standard

Cab Cage :

Standard

Cab Canopy Material :

Hard

Cab Door Material :

Hard

Cab Rollbar :

Standard

Winch

Winch Make :

Warn

Winch Pulling Weight :

1814.4 / 4000

Roller Fairlead :

Standard

Steering

Steering Type :

Power

Performance

Power Output(hp in Kw) :

59.7

Horsepower (Brake hp) :

Torque (Nm) :

Torque (Ft Lbs.) :

Manufacturer and Warranty

Manufacturer Country :

USA

Recommend Minimum Age :

Parent Company :

Textron, Inc.

Warranty Info :

12 Months / Limited / 0 hours
